고인돌 프로젝트/[Step 3] 모델 2(MVC) Spring boot

2. WEB 디렉토리 구조 잡기

고인돌개발자 2021. 8. 24. 18:46

▶ 참고 : 이 프로젝트는 | [Web 모델 1] Jsp,beans + Oracle | [Web 모델2] Servlet ,beans,jsp + Oracle 에 이어지는 프로젝트 입니다. 기존 진행했던 프로젝트를 먼저 진행하셔야 쉽게 따라올 수 있습니다.

1.  web 디렉토리 구조

    src - main - webapp 아래, 기존 Webcontents 에 있던 구조를 그대로 복사해서 넣습니다.

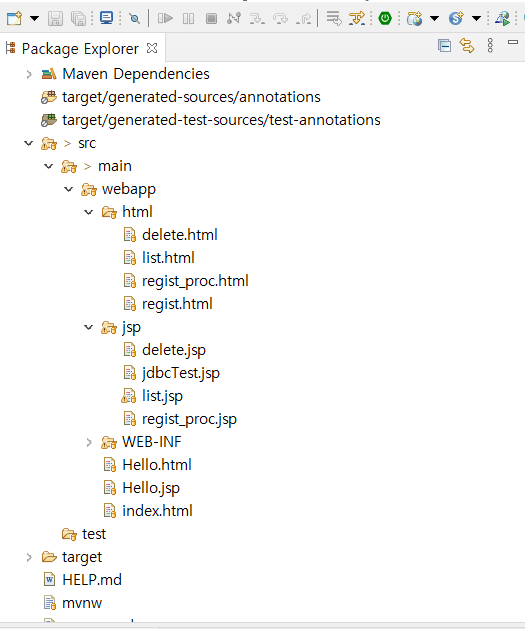

<web directory>

2.  jsp 실행여부 테스트

  ☞ html, jsp 특히 jdbcTest.jsp 가 정상 작동하는지 확인합니다.

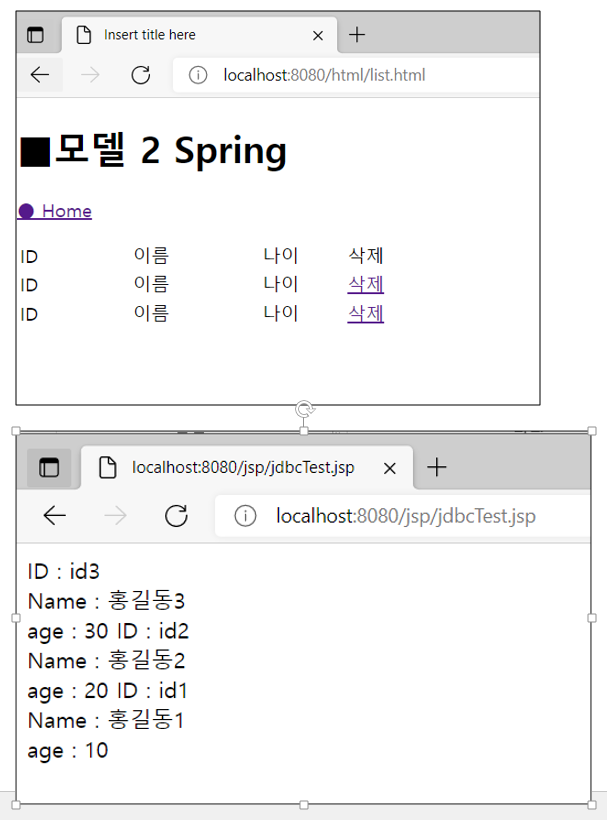

<html, jsp 실행확인>

3.  소스코드

더보기

/src/main/webapp/index.html

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>

<h1> ■모델 2 Spring </h1>

 <a href="./html/regist.html">● 등록 </a>
 <p>
 <a href="/PeopleList">● 조회 (삭제)</a>

</body>
</html>

 /src/main/webapp/html/regist.html

<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<h1> ■모델 2 Spring </h1>

 <a href="/index.html">● Home </a>
 <p>

 <form name="regist" action="/RegistPeople" method="post">
	<table style="width: 200px;">
		<tr>
			<td> 구분 </td> <td align="center">입력</td>
		</tr>
		<tr>
			<td> ID </td>   <td><input type="text" name="input_id" value="" />   </td>
		</tr>
		<tr>
			<td> Name </td> <td><input type="text" name="input_name" value="" /></td>
		</tr>
		<tr>
			<td> Age </td>  <td><input type="text" name="input_age" value="" />  </td>
		</tr>
	</table>
	<p>
	<input type="submit"  value="전송" style="width:200px;">

 </form>
</body>
</html>

/src/main/webapp/jsp/jdbcTest.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>

<%@ page import="java.sql.*" %>

<%
	String driver = "oracle.jdbc.driver.OracleDriver";
	String dbURL="jdbc:oracle:thin:@localhost:1521:xe";
	String user_id="scott";
	String user_pw="tiger";
	String qry="";

	Connection conn = null; // DB 에 connection 된 객체를 저장
    PreparedStatement ps = null;  // connection 객체에 실행문을 던지는 역할(창구)
    ResultSet rs = null;     // select 결과값을 받아옮

    try {

		/* Driver Loading */
        Class.forName(driver);
	    conn = DriverManager.getConnection(dbURL, user_id, user_pw);

	    conn.setAutoCommit(false); // 자동커밋 해제

	    System.out.println("Connection Success");

        /* Result Set , Print */
		qry = " select id, name, age, to_char(reg_date,'yyyy.mm.dd') as dati "
			+" from people ";

		ps = conn.prepareStatement(qry);
		rs = ps.executeQuery();

		while(rs.next()) {
			out.println("ID : "+rs.getString("id"));
			out.println("<br>");
			out.println("Name : "+rs.getString("name"));
			out.println("<br>");
			out.println("age : "+rs.getString("age"));

		}


     }catch (Exception e) {
		System.out.println("Error =>"+e);
		conn.rollback();
	 }finally {
		 /* Close */
		try {
			if(rs != null) rs.close();
			if(ps != null) ps.close();
			if(conn != null) conn.close();
		}catch (Exception e2) {
		}
	}



%>

/src/main/webapp/WEB-INF/view/list.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>

<%@ page import="java.util.*, com.model2.spring.di.vo.*" %>


<%
	List<People> list2 = (ArrayList<People>)request.getAttribute("people");
%>


<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Select </title>
</head>
<body>


<h1> ■모델 2 , Spring - list.jsp</h1>

 <a href="/index.html">● Home </a>
 <p>

 <table style="width: 400px;" border="0">
		<tr style="height: 40px">
			<td>ID</td>
			<td align="center">이름</td>
			<td align="center">나이</td>
			<td align="center">등록일자</td>
			<td> 삭제 </td>
		</tr>

	<%
			String strId;

	try{
			for(People p : list2){
				strId = p.getStrID();
			%>
				<tr style="height: 40px">
				<td><%=strId%></td>
				<td align="center"><%=p.getStrName()%></td>
				<td align="center"><%=p.getStrAge()%></td>
				<td align="center"><%=p.getStrDati()%></td>
				<td><a href="/DeletePeople?id=<%=strId%>">삭제 </a></td>
			</tr>
			<%
			}

	  }catch (Exception e) {
			System.out.println("Error =>"+e);
		 }finally {
		}

	%>


	</table>

</body>
</html>

/src/main/webapp/WEB-INF/view/list_lombok.jsp  (lombok 적용시 사용)

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>

<%@ page import="java.util.*,com.model2.spring.di.vo.*" %>


<%
	List<People_lombok> list2 = (ArrayList<People_lombok>)request.getAttribute("people");
%>


<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Select </title>
</head>
<body>


<h1> ■모델 2 , Spring - list_lombok.jsp </h1>

 <a href="/index.html">● Home </a>
 <p>

 <table style="width: 400px;" border="0">
		<tr style="height: 40px">
			<td>ID</td>
			<td align="center">이름</td>
			<td align="center">나이</td>
			<td align="center">등록일자</td>
			<td> 삭제 </td>
		</tr>

	<%
			String strId;

	try{
			for(People_lombok p : list2){
				strId = p.getStrID();
			%>
				<tr style="height: 40px">
				<td><%=strId%></td>
				<td align="center"><%=p.getStrName()%></td>
				<td align="center"><%=p.getStrAge()%></td>
				<td align="center"><%=p.getStrDati()%></td>
				<td><a href="/DeletePeople?id=<%=strId%>">삭제 </a></td>
			</tr>
			<%
			}

	  }catch (Exception e) {
			System.out.println("Error =>"+e);
		 }finally {
		}

	%>


	</table>

</body>
</html>
